Moving Controllers to Another Gateway

Design Mode offers another time-saving feature, which is to move a controller to a different gateway (if the system utilizes multiple gateways of the same type). It can potentially save a lot of time in terms of configuring the controller settings.

You can move PXL controllers to another PXL gateway

You can move NXT controllers to other NXT Gateways

You can move NXT-MSC controllers to other MSC-MSC Gateways

Any controller which is moved to another gateway will retain all its configuration and settings:

• Simply click the Design Mode icon then open the hardware tree.
• Click on any controller that you wish to move.
• Drag the controller to a different gateway (of the same type).

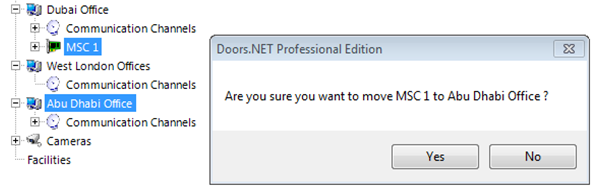

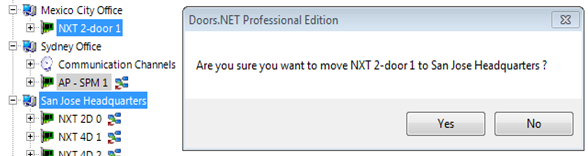

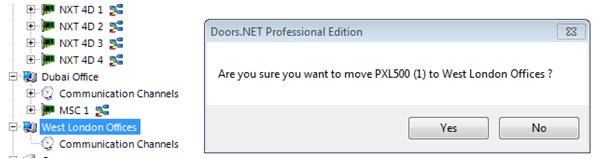

• You will see a message: "Are you sure you want to move [Controller Name] to [Gateway Name], click Yes to this message and the controller will be moved across.



Note: Ensure both gateways are online when you are moving controllers.
