Control Points

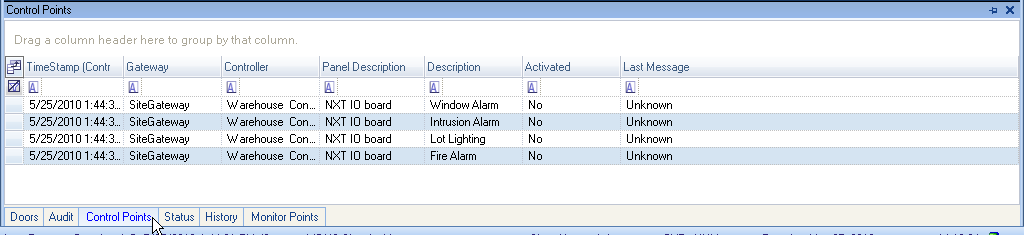

The Control Points status window displays the status of all configured control points. Click on the Control Points tab at the bottom of the program window to display this information. Each column can be sorted or grouped to quickly find a specific item.

Control Point Status Field Values:

• Timestamp (Controller) - The time this information was retrieved from the controller.
• Gateway - The gateway to which this control point is connected.
• Controller - The name of the controller to which this control point is connected.
• Panel Description - The type of panel to which this control point is connected.
• Description - The descriptive name assigned to this control point.
• Activated - The current state of the control point.
• Last Message - The last message associated with this control point.

Control Point Status Context Menu:

Right-click on a control point listing and a context menu of options appears.

Off - Immediately turn this control point off.

On - Immediately turn this control point on.

Pulse - Immediately pulse this control point.

Request Status - Performs an immediate status update of the control point.

History - Opens the History Status window for that control point.

Properties - Opens the Hardware Setup window for that control point.
