Hardware Status

Status tabs are found at the bottom of the work space/data display field.

• Certain status tabs only appear when its corresponding feature is accessed or enabled.
• Mouse over a tab to have that tab's window open in the work space/data display field.
• Mouse onto the window and you can review the information within.
• Mouse off the window and the window closes.
• Click on the push-pin icon in the upper right of the window to "pin" that window and have it stay open when you mouse off. Click on the push-pin icon again to "un-pin" the window.

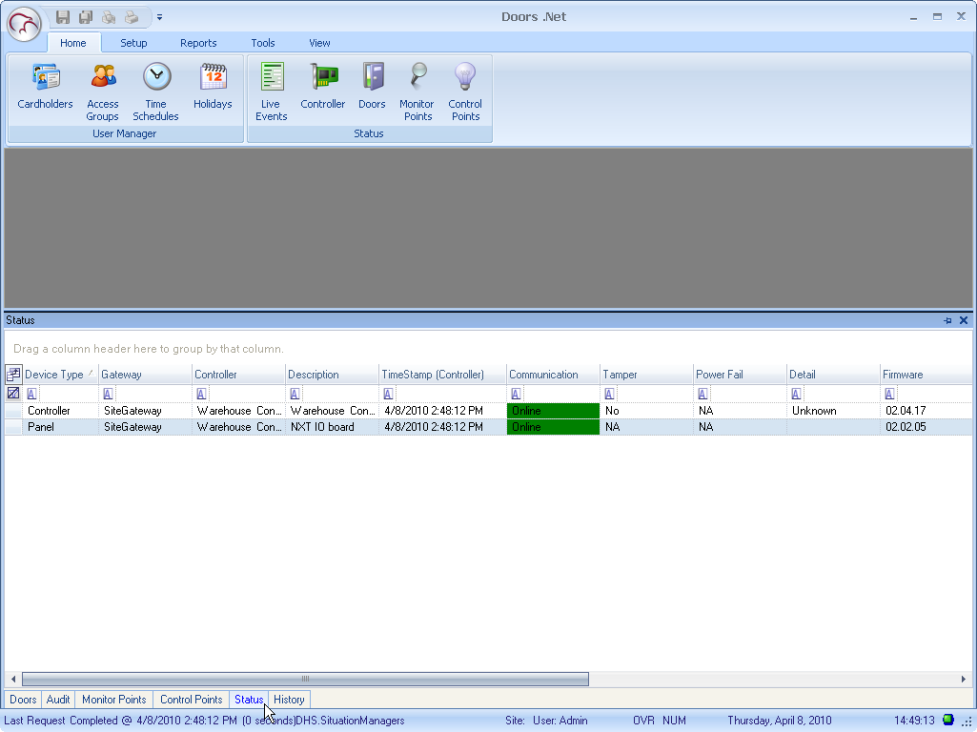

The example above displays the Status tab. Each tab has unique data sets.

• Alerts - lists events that require acknowledgment by an operator
• Control Points - lists information on all control points (outputs)
• Doors - lists information on doors
• Live Events - lists transactions in real-time
• Monitor Points - lists information on all monitor points (inputs)
• Status - lists controller status
• Trace Events - lists events specifically designated for display by the operator
